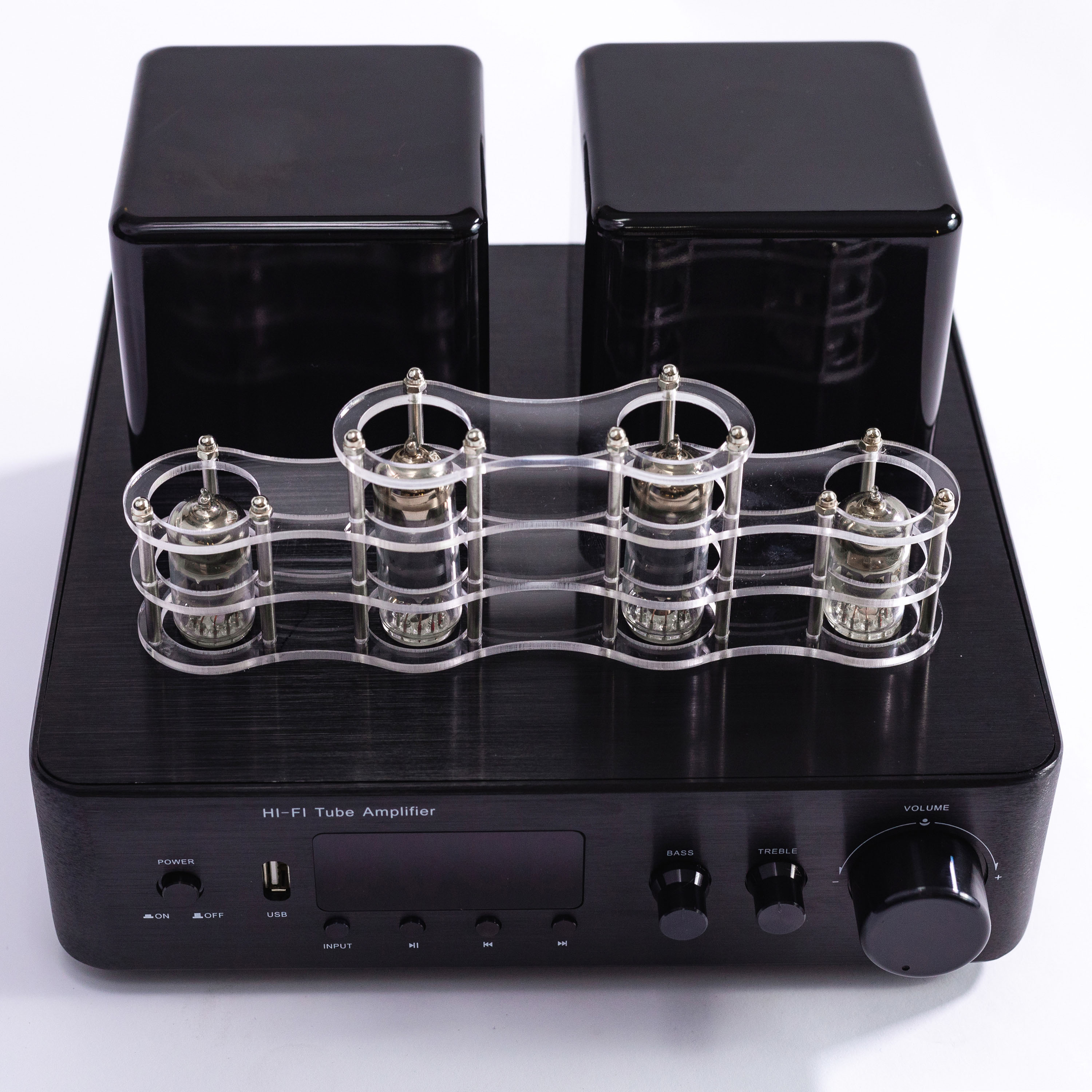

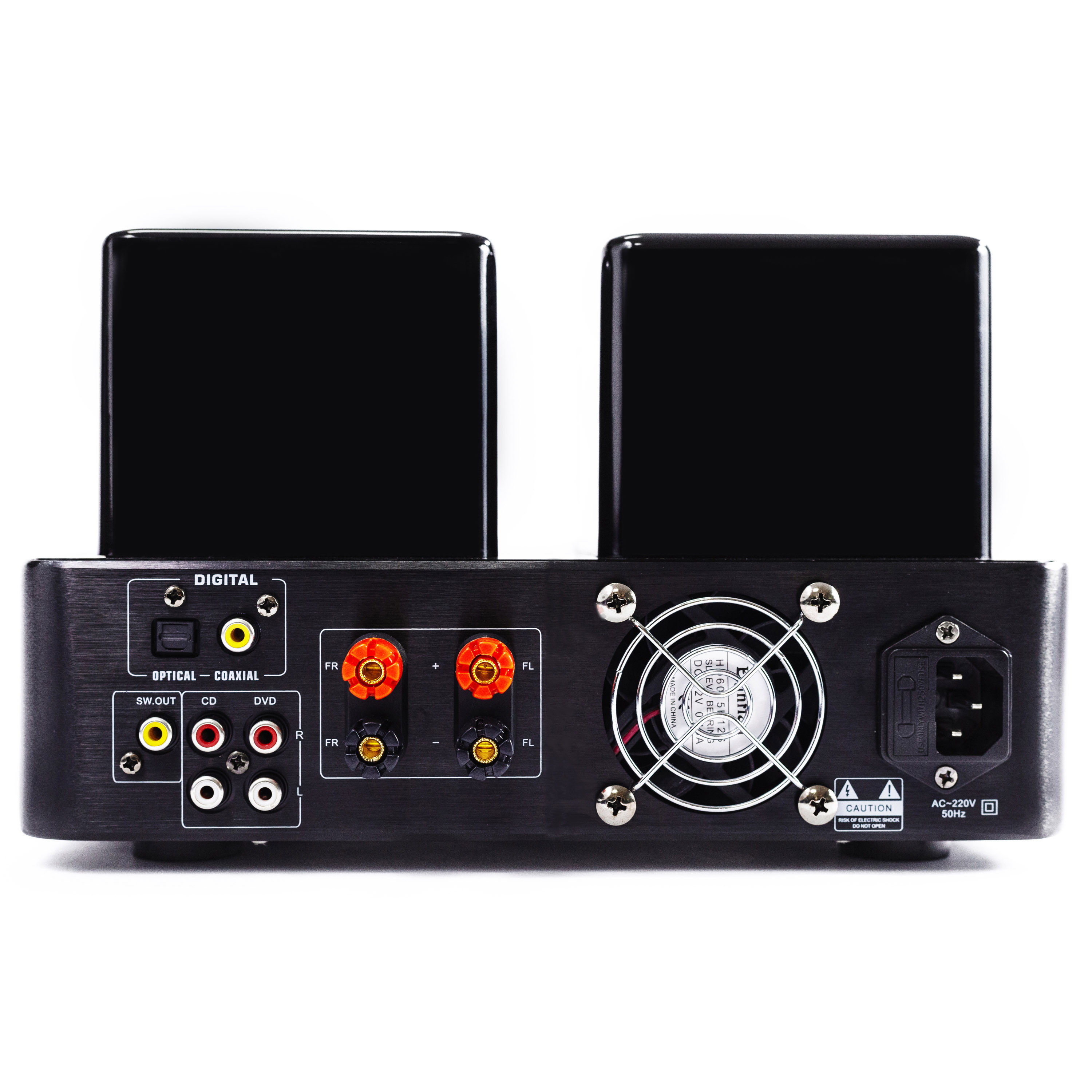

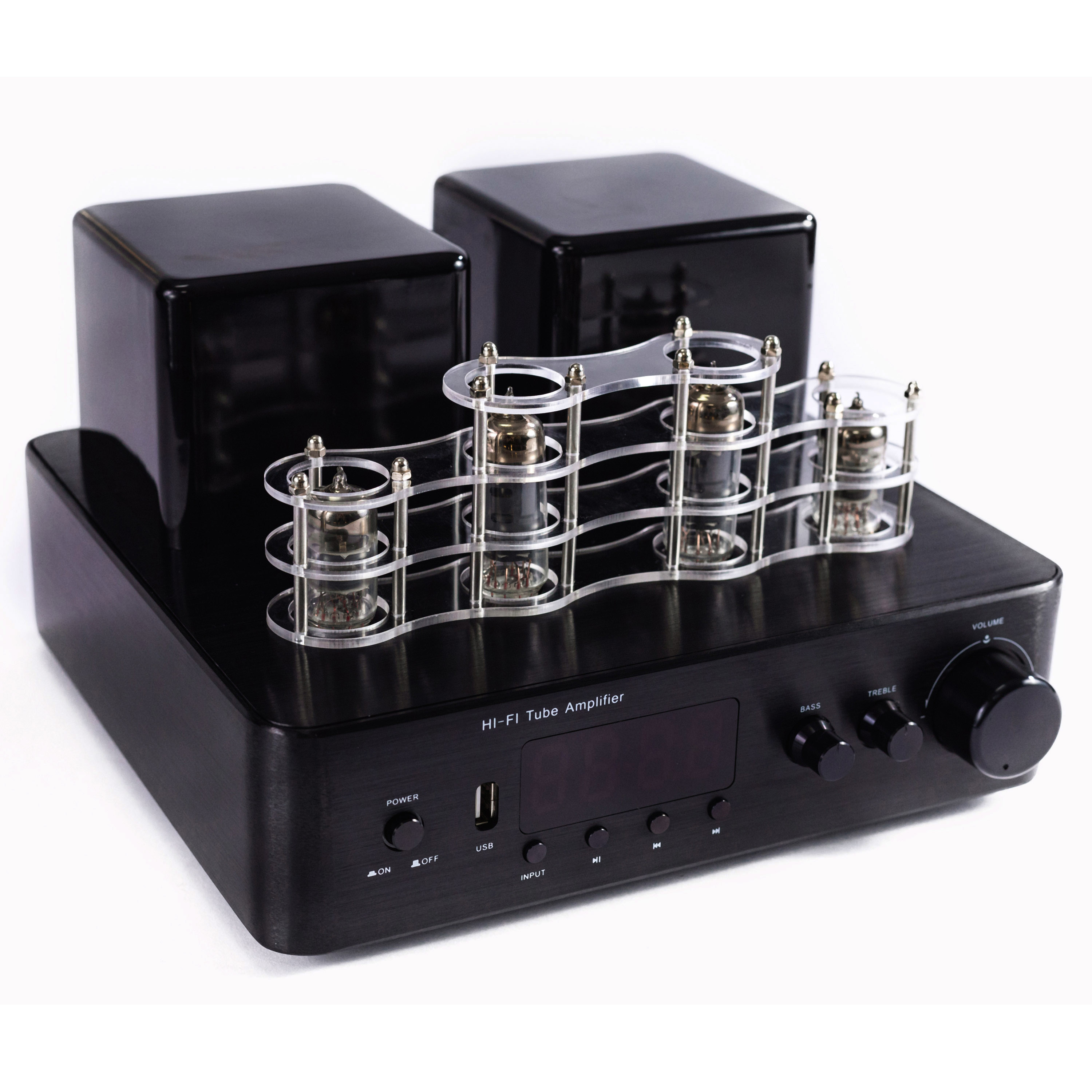

JTA50

Specifications:


Power Output: 50 watts RMS x 2 into 4 ohms
Total Harmonic Distortion:1% @ 50W per channel
Minimum Speaker Impedance: 4 ohm
Frequency Response:  20-20,000 Hz, ±2 dB
Channel Separation:65 dB
Signal to Noise Ratio: >80 dB
Media Playback File Support: FLAC, WAV, APE, WMA, MP3
Digital Audio DAC SNR:  96 dB
Digital Audio DAC Sample Rate:Up to 16-bit/48kHz
Preamplifi er Tube: 6U1 x2 6F2 x2
Transistors: Toshiba A1941 x 2, Toshiba C5198 x 2
Bluetooth Version: 5.0
Input Impedance:  47k ohms (minimum)
Input Sensitivity:600 mV
Switching Voltage:110V/220V

Headphone Amp Output: 32 ohms; 35 mW (maximum @ 1 kHz, <1% THD+N)
Product dimension:L271*W286*H168(MM)
NW:6.1KG
GW:6.9KG
Master-carton dimension(2 Stes):L350*W325*H450(MM)
Master-carton GW(2 Stes):15KG
